Nitrogen

References

Equation of State

Roland Span, Eric W. Lemmon, Richard T. Jacobsen, Wolfgang Wagner, and Akimichi Yokozeki. A Reference Equation of State for the Thermodynamic Properties of Nitrogen for Temperatures from 63.151 to 1000 K and Pressures to 2200 MPa. J. Phys. Chem. Ref. Data, 29:1361–1433, 2000. doi:10.1063/1.1349047.

Thermal Conductivity

E. W. Lemmon and R. T Jacobsen. Viscosity and Thermal Conductivity Equations for Nitrogen, Oxygen, Argon, and Air. Int. J. Thermophys., 25(1):21–69, 2004. doi:10.1023/B:IJOT.0000022327.04529.f3.

Viscosity

E. W. Lemmon and R. T Jacobsen. Viscosity and Thermal Conductivity Equations for Nitrogen, Oxygen, Argon, and Air. Int. J. Thermophys., 25(1):21–69, 2004. doi:10.1023/B:IJOT.0000022327.04529.f3.

Melting Line

Roland Span, Eric W. Lemmon, Richard T. Jacobsen, Wolfgang Wagner, and Akimichi Yokozeki. A Reference Equation of State for the Thermodynamic Properties of Nitrogen for Temperatures from 63.151 to 1000 K and Pressures to 2200 MPa. J. Phys. Chem. Ref. Data, 29:1361–1433, 2000. doi:10.1063/1.1349047.

Surface Tension

A. Mulero, I. Cachadiña, and M. I. Parra. Recommended Correlations for the Surface Tension of Common Fluids. J. Phys. Chem. Ref. Data, 41(4):043105–1:13, 2012. doi:10.1063/1.4768782.

Aliases

nitrogen, NITROGEN, N2, R728

Fluid Information

Parameter, Value

General

Molar mass [kg/mol]

0.02801348

CAS number

7727-37-9

ASHRAE class

A1

Formula

\(N_{2}\)

Acentric factor

0.0372

InChI

InChI=1S/N2/c1-2

InChIKey

IJGRMHOSHXDMSA-UHFFFAOYSA-N

SMILES

N#N

ChemSpider ID

922

2D image

http://www.chemspider.com/ImagesHandler.ashx?id=922

Limits

Maximum temperature [K]

2000.0

Maximum pressure [Pa]

2200000000.0

Triple point

Triple point temperature [K]

63.151

Triple point pressure [Pa]

12519.78348430944

Critical point

Critical point temperature [K]

126.192

Critical point density [kg/m3]

313.3

Critical point density [mol/m3]

11183.901464580624

Critical point pressure [Pa]

3395800.0

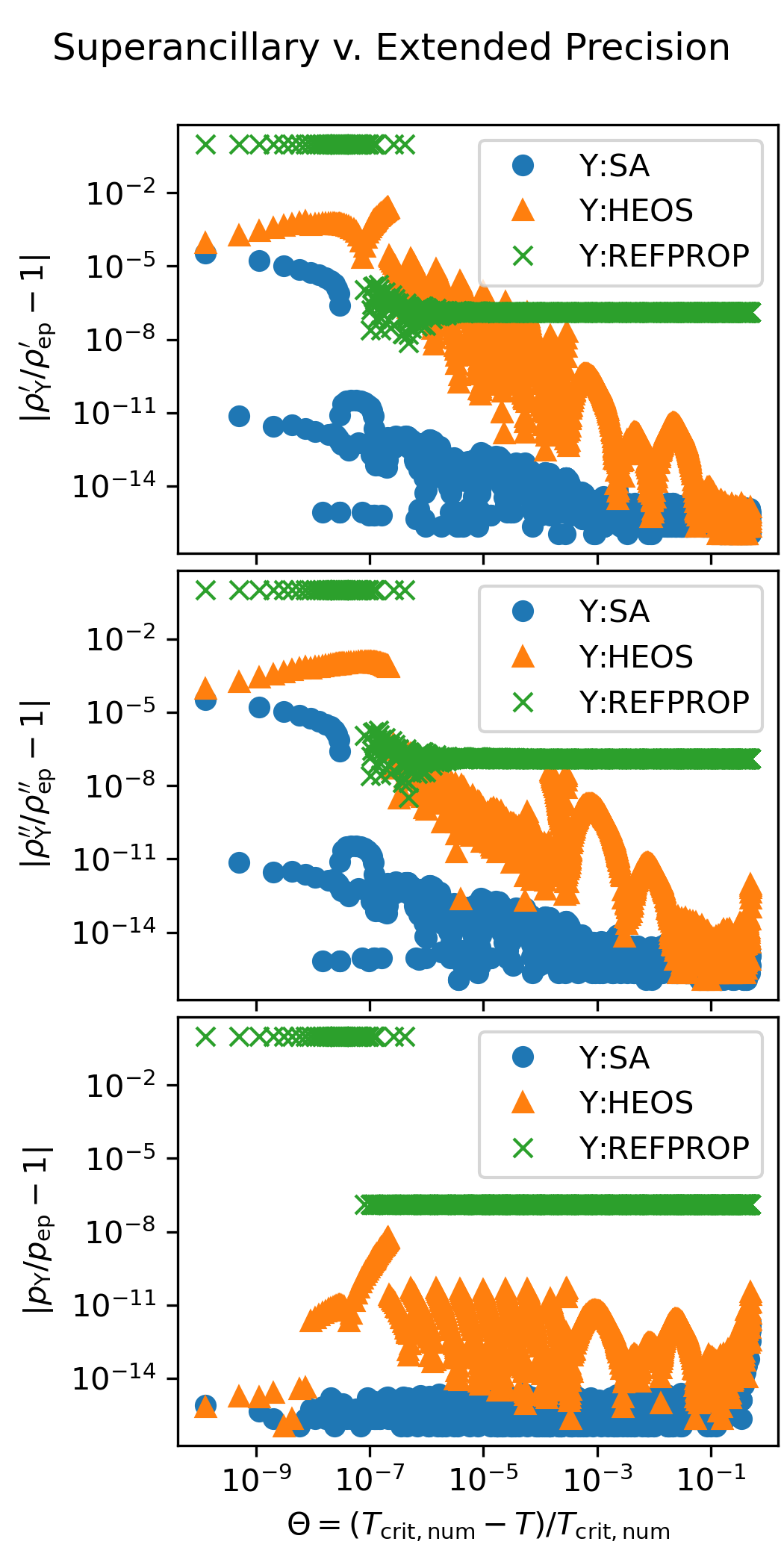

REFPROP Validation Data

Note

This figure compares the results generated from CoolProp and those generated from REFPROP. They are all results obtained in the form \(Y(T,\rho)\), where \(Y\) is the parameter of interest and which for all EOS is a direct evaluation of the EOS

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/Nitrogen.png

Consistency Plots

The following figure shows all the flash routines that are available for this fluid. A red + is a failure of the flash routine, a black dot is a success. Hopefully you will only see black dots. The red curve is the maximum temperature curve, and the blue curve is the melting line if one is available for the fluid.

In this figure, we start off with a state point given by T,P and then we calculate each of the other possible output pairs in turn, and then try to re-calculate T,P from the new input pair. If we don’t arrive back at the original T,P values, there is a problem in the flash routine in CoolProp. For more information on how these figures were generated, see CoolProp.Plots.ConsistencyPlots

Note

You can download the script that generated the following figure here: (link to script), right-click the link and then save as… or the equivalent in your browser. You can also download this figure as a PDF.

../../_images/Nitrogen1.png
