High-Level Interface

PropsSI function

For many users, all that is needed is a simple call to the PropsSI function for pure fluids, pseudo-pure fluids and mixtures. For humid air properties, see Humid air properties. An example using PropsSI:

# Import the PropsSI function
In [1]: from CoolProp.CoolProp import PropsSI

# Saturation temperature of Water at 1 atm in K
In [2]: PropsSI('T','P',101325,'Q',0,'Water')
Out[2]: 373.1242958476844

In this example, the first parameter, \(T\), is the output property that will be returned from PropsSI. The second and fourth parameters are the specified input pair of properties that determine the state point where the output property will be calculated. The output property and input pair properties are text strings and must be quoted. The third and fifth parameters are the values of the input pair properties and will determine the state point. The sixth and last parameter is the fluid for which the output property will be calculated; also a quoted string.

More information:

All the wrappers wrap this function in exactly the same way.

For pure and pseudo-pure fluids, two state variables are required to fix the state. The equations of state are based on \(T\) and \(\rho\) as state variables, so \(T, \rho\) will always be the fastest inputs. \(P,T\) will be a bit slower (3-10 times), followed by input pairs where neither \(T\) nor \(\rho\) are specified, like \(P,H\); these will be much slower. If speed is an issue, you can look into table-based interpolation methods using TTSE or bicubic interpolation; or if you are only interested in Water properties, you can look into using the IF97 (industrial formulation) backend.

Vapor, Liquid, and Saturation States

If the input pair (say, \(P,T\)) defines a state point that lies in the vapor region, then the vapor property at that state point will be returned. Likewise, if the state point lies in the liquid region, then the liquid state property at that state point will be returned. If the state point defined by the input pair lies within 1E-4 % of the saturation pressure, then CoolProp may return an error, because both liquid and vapor are defined along the saturation curve.

To retrieve either the vapor or liquid properties along the saturation curve, provide an input pair that includes either the saturation temperature, \(T\), or saturation pressure, \(p\), along with the vapor quality, \(Q\). Use a value of \(Q=1\) for the saturated vapor property or \(Q=0\) for the saturated liquid property. For example, at a saturation pressure of 1 atm, the liquid and vapor enthalpies can be returned as follows.

# Import the PropsSI function
In [3]: from CoolProp.CoolProp import PropsSI

# Saturated vapor enthalpy of Water at 1 atm in J/kg
In [4]: H_V = PropsSI('H','P',101325,'Q',1,'Water'); print(H_V)
2675529.3255007486

# Saturated liquid enthalpy of Water at 1 atm in J/kg
In [5]: H_L = PropsSI('H','P',101325,'Q',0,'Water'); print(H_L)
419057.7330940691

# Latent heat of vaporization of Water at 1 atm in J/kg
In [6]: H_V - H_L
Out[6]: 2256471.5924066794

Note

The latent heat of vaporization can be calculated using the difference between the vapor and liquid enthalpies at the same point on the saturation curve.

Imposing the Phase (Optional)

Each call to PropsSI() requires the phase to be determined based on the provided input pair, and may require a non-trivial flash calculation to determine if the state point is in the single-phase or two-phase region and to generate a sensible initial guess for the solver. For computational efficiency, PropsSI() allows the phase to be manually imposed through the input key parameters. If unspecified, PropsSI will attempt to determine the phase automatically.

Depending on the input pair, there may or may not be a speed benefit to imposing a phase. However, some state points may not be able to find a suitable initial guess for the solver and being able to impose the phase manually may offer a solution if the solver is failing. Additionally, with an input pair in the two-phase region, it can be useful to impose a liquid or gas phase to instruct PropsSI() to return the saturated liquid or saturated gas properties.

To specify the phase to be used, add the “|” delimiter to one (and only one) of the input key strings followed by one of the phase strings in the table below:

Phase String

Phase Region

“liquid”

p < pcrit & T < Tcrit ; above saturation

“gas”

p < pcrit & T < Tcrit ; below saturation

“twophase”

p < pcrit & T < Tcrit ; mixed liquid/gas

“supercritical_liquid”

p > pcrit & T < Tcrit

“supercritical_gas”

p < pcrit & T > Tcrit

“supercritical”

p > pcrit & T > Tcrit

“not_imposed”

(Default) CoolProp to determine phase

For example:

# Get the density of Water at T = 461.1 K and P = 5.0e6 Pa, imposing the liquid phase
In [7]: PropsSI('D','T|liquid',461.1,'P',5e6,'Water')
Out[7]: 881.000853334732

# Get the density of Water at T = 597.9 K and P = 5.0e6 Pa, imposing the gas phase
In [8]: PropsSI('D','T',597.9,'P|gas',5e6,'Water')
Out[8]: 20.508496070580005

On each call to PropsSI(), the imposed phase is reset to “not_imposed” as long as no imposed phase strings are used. A phase string must be appended to an Input key string on each and every call to PropsSI() to impose the phase. PropsSI() will return an error for any of the following syntax conditions:

  • If anything other than the pipe, “|”, symbol is used as the delimiter

  • If the phase string is not one of the valid phase strings in the table above

  • If the phase string is applied to more than one of the Input key parameters

In addition, for consistency with the low-level interface, the valid phase strings in the table above may be prefixed with either “phase_” or “iphase_” and still be recognized as a valid phase string.

Warning

When specifying an imposed phase, it is absolutely critical that the input pair actually lie within the imposed phase region. If an incorrect phase is imposed for the given input pair, PropsSI() may throw unexpected errors or incorrect results may possibly be returned from the property functions. If the state point phase is not absolutely known, it is best to let CoolProp determine the phase.

Fluid information

You can obtain string-encoded information about the fluid from the get_fluid_param_string function with something like:

In [9]: import CoolProp.CoolProp as CP

In [10]: for k in ['formula','CAS','aliases','ASHRAE34','REFPROP_name','pure','INCHI','INCHI_Key','CHEMSPIDER_ID']:
   ....:     item = k + ' --> ' + CP.get_fluid_param_string("R125", k)
   ....:     print(item)
   ....:
formula --> C_{2}F_{5}H_{1}
CAS --> 354-33-6
aliases -->
ASHRAE34 --> UNKNOWN
REFPROP_name --> R125
pure --> true
INCHI --> InChI=1S/C2HF5/c3-1(4)2(5,6)7/h1H
INCHI_Key --> GTLACDSXYULKMZ-UHFFFAOYSA-N
CHEMSPIDER_ID --> 9256

Trivial inputs

In order to obtain trivial inputs that do not depend on the thermodynamic state, in wrappers that support the Props1SI function, you can obtain the trivial parameter (in this case the critical temperature of water) like:

Props1SI(“Tcrit”,”Water”)

In python, the PropsSI function is overloaded to also accept two inputs:

In [11]: import CoolProp.CoolProp as CP

In [12]: CP.PropsSI("Tcrit","Water")
Out[12]: 647.096

In [13]: CP.PropsSI("Tcrit","REFPROP::WATER")
Out[13]: 647.096

Furthermore, you can in all languages call the PropsSI function directly using dummy arguments for the other unused parameters:

In [14]: import CoolProp.CoolProp as CP

In [15]: CP.PropsSI("Tcrit","",0,"",0,"Water")
Out[15]: 647.096

PhaseSI function

It can be useful to know what the phase of a given state point is. A high-level function called PhaseSI has been implemented to allow for access to the phase.

In [16]: import CoolProp.CoolProp as CP

In [17]: CP.PhaseSI('P',101325,'Q',0,'Water')
Out[17]: 'twophase'

The phase index (as floating point number) can also be obtained using the PropsSI function. In python you would do:

In [18]: import CoolProp.CoolProp as CP

In [19]: CP.PropsSI('Phase','P',101325,'Q',0,'Water')
Out[19]: 6.0

where you can obtain the integer indices corresponding to the phase flags using the get_phase_index function:

In [20]: import CoolProp.CoolProp as CP

In [21]: CP.get_phase_index('phase_twophase')
Out[21]: 6

# Or for liquid
In [22]: CP.get_phase_index('phase_liquid')
Out[22]: 0

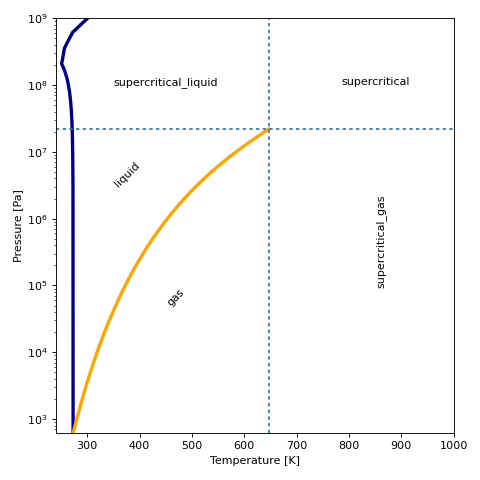

For a given fluid, the phase can be plotted in T-p coordinates:

(Source code, png, .pdf)

../_images/HighLevelAPI-1.png

Partial Derivatives

First Partial Derivatives for Single-phase States

For some applications it can be useful to have access to partial derivatives of thermodynamic properties. A generalized first partial derivative has been implemented into CoolProp, which can be obtained using the PropsSI function by encoding the desired derivative as a string. The format of the string is d(OF)/d(WRT)|CONSTANT which is the same as

\[\left. \frac{\partial OF}{\partial WRT}\right|_{CONSTANT}\]

At the low-level, the CoolProp code calls the function AbstractState::first_partial_deriv(). Refer to the function documentation to see how the generalized derivative works.

Warning

This derivative formulation is currently only valid for homogeneous (single-phase) states. Two phase derivatives are not defined, and are for many combinations, invalid.

Here is an example of calculating the constant pressure specific heat, which is defined by the relation

\[c_p = \left.\frac{\partial h}{\partial T}\right|_{p}\]

and called through python

In [23]: import CoolProp.CoolProp as CP

# c_p using c_p
In [24]: CP.PropsSI('C','P',101325,'T',300,'Water')
Out[24]: 4180.6357765560715

# c_p using derivative
In [25]: CP.PropsSI('d(Hmass)/d(T)|P','P',101325,'T',300,'Water')
Out[25]: 4180.6357765560715

It is also possible to call the derivatives directly using the low-level partial derivatives functionality. The low-level routine is in general faster because it avoids the string parsing.

Second Partial Derivatives for Single-Phase States

In a similar fashion it is possible to evaluate second derivatives. For instance, the derivative of \(c_p\) with respect to mass-based specific enthalpy at constant pressure could be obtained by

In [26]: import CoolProp.CoolProp as CP

# c_p using derivative
In [27]: CP.PropsSI('d(d(Hmass)/d(T)|P)/d(Hmass)|P','P',101325,'T',300,'Water')
Out[27]: -7.767989468924389e-05

where the inner part d(Hmass)/d(T)|P is the definition of \(c_p\).

Warning

This derivative formulation is currently only valid for homogeneous (single-phase) states. Two phase derivatives are not defined, and are for many combinations, invalid.

It is also possible to call the derivatives directly using the low-level partial derivatives functionality. The low-level routine is in general faster because it avoids the string parsing.

First Saturation Derivatives

It is also possible to retrieve the derivatives along the saturation curves using the high-level interface, encoding the desired derivative as a string just like for the single-phase derivatives.

Warning

This derivative formulation is currently only valid for saturated states where the vapor quality is either 0 or 1.

For instance, to calculate the saturation derivative of enthalpy ALONG the saturated vapor curve, you could do:

In [28]: import CoolProp

In [29]: CoolProp.CoolProp.PropsSI('d(Hmolar)/d(T)|sigma','P',101325,'Q',1,'Water')
Out[29]: 28.427795995713694

It is also possible to call the derivatives directly using the low-level partial derivatives functionality. The low-level routine is in general faster because it avoids the string parsing.

Predefined Mixtures

A number of predefined mixtures are included in CoolProp. You can retrieve the list of predefined mixtures by calling get_global_param_string("predefined_mixtures") which will return a comma-separated list of predefined mixtures. In Python, to get the first 6 mixtures, you would do

In [30]: import CoolProp.CoolProp as CP

In [31]: CP.get_global_param_string('predefined_mixtures').split(',')[0:6]
Out[31]:
['AIR.MIX',
 'AMARILLO.MIX',
 'Air.mix',
 'Amarillo.mix',
 'EKOFISK.MIX',
 'Ekofisk.mix']

and then to calculate the density of air using the mixture model at 1 atmosphere (=101325 Pa) and 300 K, you could do

In [32]: import CoolProp.CoolProp as CP

In [33]: CP.PropsSI('D','P',101325,'T',300,'Air.mix')
Out[33]: 1.1766922904316655

Exactly the same methodology can be used from other wrappers.

User-Defined Mixtures

When using mixtures in CoolProp, you can specify mixture components and composition by encoding the mixture components and mole fractions by doing something like

In [34]: import CoolProp.CoolProp as CP

In [35]: CP.PropsSI('D','T',300,'P',101325,'HEOS::R32[0.697615]&R125[0.302385]')
Out[35]: 2.986886779635724

You can handle ternary and multi-component mixtures in the same fashion, just add the other components to the fluid string with a & separating components and the fraction of the component in [ and ] brackets

Reference States

Enthalpy and entropy are relative properties! You should always be comparing differences in enthalpy rather than absolute values of the enthalpy or entropy. That said, if can be useful to set the reference state values for enthalpy and entropy to one of a few standard values. This is done by the use of the set_reference_state function in python, or the set_reference_stateS function most everywhere else. For documentation of the underlying C++ function, see CoolProp::set_reference_stateS().

Warning

The changing of the reference state should be part of the initialization of your program, and it is not recommended to change the reference state during the course of making calculations

A number of reference states can be used:

  • IIR: h = 200 kJ/kg, s=1 kJ/kg/K at 0C saturated liquid

  • ASHRAE: h = 0, s = 0 @ -40C saturated liquid

  • NBP: h=0, s=0 for saturated liquid at 1 atmosphere

  • DEF: Go back to the default reference state for the fluid

which can be used like

In [36]: import CoolProp.CoolProp as CP

In [37]: CP.set_reference_state('n-Propane','ASHRAE')

# Should be zero (or very close to it)
In [38]: CP.PropsSI('H', 'T', 233.15, 'Q', 0, 'n-Propane')
Out[38]: 2.928438593838672e-11

# Back to the original value
In [39]: CP.set_reference_state('n-Propane','DEF')

# Should not be zero
In [40]: CP.PropsSI('H', 'T', 233.15, 'Q', 0, 'n-Propane')
Out[40]: 105123.27213761522

For non-standard reference states, you can specify them directly for the given temperature and molar(!) density. Here is an example of setting the enthalpy and entropy at 298.15 K and 1 atm to some specified values

In [41]: import CoolProp.CoolProp as CP

In [42]: Dmolar = CP.PropsSI("Dmolar", "T", 298.15, "P", 101325, "NH3")

In [43]: CP.set_reference_state('NH3', 298.15, Dmolar, -60000.12, 314.159) # fluid, T, D (mol/m^3), h (J/mol), s (J/mol/K)

In [44]: CP.PropsSI("Hmolar", "T", 298.15, "P", 101325, "NH3")
Out[44]: -60000.119999999995

In [45]: CP.PropsSI("Smolar", "T", 298.15, "P", 101325, "NH3")
Out[45]: 314.15900000000005

# Back to the original value
In [46]: CP.set_reference_state('NH3','DEF')

Calling REFPROP

If you have the REFPROP library installed, you can call REFPROP in the same way that you call CoolProp, but with REFPROP:: preceding the fluid name. For instance, as in python:

In [47]: import CoolProp.CoolProp as CP

# Using properties from CoolProp to get R410A density
In [48]: CP.PropsSI('D','T',300,'P',101325,'HEOS::R32[0.697615]&R125[0.302385]')
Out[48]: 2.986886779635724

# Using properties from REFPROP to get R410A density
In [49]: CP.PropsSI('D','T',300,'P',101325,'REFPROP::R32[0.697615]&R125[0.302385]')
Out[49]: 2.9868867801892165

Adding Fluids

The fluids in CoolProp are all compiled into the library itself, and are given in the JSON format. They are all stored in the dev/fluids folder relative to the root of the repository. If you want to obtain the JSON data for a fluid from CoolProp, print out a part of it, and then load it back into CoolProp, you could do:

In [50]: import CoolProp.CoolProp as CP

# Get the JSON structure for Water
In [51]: jj = CP.get_fluid_param_string("Water", "JSON")

# Now load it back into CoolProp - Oops! This isn't going to work because it is already there.
In [52]: CP.add_fluids_as_JSON("HEOS", jj)
---------------------------------------------------------------------------
RuntimeError                              Traceback (most recent call last)
Cell In [52], line 1
----> 1 CP.add_fluids_as_JSON("HEOS", jj)

File CoolProp/CoolProp.pyx:303, in CoolProp.CoolProp.add_fluids_as_JSON()

File CoolProp/CoolProp.pyx:307, in CoolProp.CoolProp.add_fluids_as_JSON()

RuntimeError: Unable to load fluid [Water] due to error: Cannot load fluid [Water:7732-18-5] because it is already in library; index = [93] of [123]; Consider enabling the config boolean variable OVERWRITE_FLUIDS

# Set the configuration variable allowing for overwriting
In [53]: CP.set_config_bool(CP.OVERWRITE_FLUIDS, True)

# Now load it back into CoolProp - Success!
In [54]: CP.add_fluids_as_JSON("HEOS", jj)

# Turn overwriting back off
In [55]: CP.set_config_bool(CP.OVERWRITE_FLUIDS, False)

C++ Sample Code

#include "CoolProp.h"
#include <iostream>
#include <stdlib.h>
using namespace CoolProp;
int main() {
    // First type (slowest, due to most string processing, exposed in DLL)
    std::cout << PropsSI("Dmolar", "T", 298, "P", 1e5, "Propane[0.5]&Ethane[0.5]") << std::endl;  // Default backend is HEOS
    std::cout << PropsSI("Dmolar", "T", 298, "P", 1e5, "HEOS::Propane[0.5]&Ethane[0.5]") << std::endl;
    std::cout << PropsSI("Dmolar", "T", 298, "P", 1e5, "REFPROP::Propane[0.5]&Ethane[0.5]") << std::endl;
    // Vector example
    std::vector<double> z(2, 0.5);
    // Second type (C++ only, a bit faster, allows for vector inputs and outputs)
    std::vector<std::string> fluids;
    fluids.push_back("Propane");
    fluids.push_back("Ethane");
    std::vector<std::string> outputs;
    outputs.push_back("Dmolar");
    std::vector<double> T(1, 298), p(1, 1e5);
    std::cout << PropsSImulti(outputs, "T", T, "P", p, "", fluids, z)[0][0] << std::endl;  // Default backend is HEOS
    std::cout << PropsSImulti(outputs, "T", T, "P", p, "HEOS", fluids, z)[0][0] << std::endl;
    // Comment me out if REFPROP is not installed
    std::cout << PropsSImulti(outputs, "T", T, "P", p, "REFPROP", fluids, z)[0][0] << std::endl;
    // All done return
    return EXIT_SUCCESS;
}

C++ Sample Code Output

40.8269
40.8269
40.8269
40.8269
40.8269
40.8269

Sample Code

In [56]: import CoolProp as CP

In [57]: print(CP.__version__)
6.6.0

In [58]: print(CP.__gitrevision__)
ba21c74fd1c3a4934bbecbf459936983dec424c2

#Import the things you need
In [59]: from CoolProp.CoolProp import PropsSI

# Specific heat (J/kg/K) of 20% ethylene glycol as a function of T
In [60]: PropsSI('C','T',298.15,'P',101325,'INCOMP::MEG-20%')
Out[60]: 3905.2706242925874

# Density of Air at standard atmosphere in kg/m^3
In [61]: PropsSI('D','T',298.15,'P',101325,'Air')
Out[61]: 1.1843184839089664

# Saturation temperature of Water at 1 atm
In [62]: PropsSI('T','P',101325,'Q',0,'Water')
Out[62]: 373.1242958476844

# Saturated vapor enthalpy of R134a at 0C (Q=1)
In [63]: PropsSI('H','T',273.15,'Q',1,'R134a')
Out[63]: 398603.45362765493

# Saturated liquid enthalpy of R134a at 0C (Q=0)
In [64]: PropsSI('H','T',273.15,'Q',0,'R134a')
Out[64]: 199999.98852614488

# Using properties from CoolProp to get R410A density
In [65]: PropsSI('D','T',300,'P',101325,'HEOS::R32[0.697615]&R125[0.302385]')
Out[65]: 2.986886779635724

# Using properties from REFPROP to get R410A density
In [66]: PropsSI('D','T',300,'P',101325,'REFPROP::R32[0.697615]&R125[0.302385]')
Out[66]: 2.9868867801892165

# Check that the same as using pseudo-pure
In [67]: PropsSI('D','T',300,'P',101325,'R410A')
Out[67]: 2.986868076922677

# Using IF97 to get Water saturated vapor density at 100C
In [68]: PropsSI('D','T',400,'Q',1,'IF97::Water')
Out[68]: 1.3692496283046673

# Check the IF97 result using the default HEOS
In [69]: PropsSI('D','T',400,'Q',1,'Water')
Out[69]: 1.3694075410068227

Table of string inputs to PropsSI function

Note

Please note that any parameter that is indicated as a trivial parameter can be obtained from the Props1SI function as shown above in Trivial inputs

Parameter

Units

Input/Output

Trivial

Description

DELTA, Delta

IO

False

Reduced density (rho/rhoc)

DMOLAR, Dmolar

mol/m^3

IO

False

Molar density

D, DMASS, Dmass

kg/m^3

IO

False

Mass density

HMOLAR, Hmolar

J/mol

IO

False

Molar specific enthalpy

H, HMASS, Hmass

J/kg

IO

False

Mass specific enthalpy

P

Pa

IO

False

Pressure

Q

mol/mol

IO

False

Molar vapor quality

SMOLAR, Smolar

J/mol/K

IO

False

Molar specific entropy

S, SMASS, Smass

J/kg/K

IO

False

Mass specific entropy

TAU, Tau

IO

False

Reciprocal reduced temperature (Tc/T)

T

K

IO

False

Temperature

UMOLAR, Umolar

J/mol

IO

False

Molar specific internal energy

U, UMASS, Umass

J/kg

IO

False

Mass specific internal energy

ACENTRIC, acentric

O

True

Acentric factor

ALPHA0, alpha0

O

False

Ideal Helmholtz energy

ALPHAR, alphar

O

False

Residual Helmholtz energy

A, SPEED_OF_SOUND, speed_of_sound

m/s

O

False

Speed of sound

BVIRIAL, Bvirial

O

False

Second virial coefficient

CONDUCTIVITY, L, conductivity

W/m/K

O

False

Thermal conductivity

CP0MASS, Cp0mass

J/kg/K

O

False

Ideal gas mass specific constant pressure specific heat

CP0MOLAR, Cp0molar

J/mol/K

O

False

Ideal gas molar specific constant pressure specific heat

CPMOLAR, Cpmolar

J/mol/K

O

False

Molar specific constant pressure specific heat

CVIRIAL, Cvirial

O

False

Third virial coefficient

CVMASS, Cvmass, O

J/kg/K

O

False

Mass specific constant volume specific heat

CVMOLAR, Cvmolar

J/mol/K

O

False

Molar specific constant volume specific heat

C, CPMASS, Cpmass

J/kg/K

O

False

Mass specific constant pressure specific heat

D2ALPHA0_DDELTA2_CONSTTAU, d2alpha0_ddelta2_consttau

O

False

Second derivative of ideal Helmholtz energy with delta

D3ALPHA0_DDELTA3_CONSTTAU, d3alpha0_ddelta3_consttau

O

False

Third derivative of ideal Helmholtz energy with delta

DALPHA0_DDELTA_CONSTTAU, dalpha0_ddelta_consttau

O

False

Derivative of ideal Helmholtz energy with delta

DALPHA0_DTAU_CONSTDELTA, dalpha0_dtau_constdelta

O

False

Derivative of ideal Helmholtz energy with tau

DALPHAR_DDELTA_CONSTTAU, dalphar_ddelta_consttau

O

False

Derivative of residual Helmholtz energy with delta

DALPHAR_DTAU_CONSTDELTA, dalphar_dtau_constdelta

O

False

Derivative of residual Helmholtz energy with tau

DBVIRIAL_DT, dBvirial_dT

O

False

Derivative of second virial coefficient with respect to T

DCVIRIAL_DT, dCvirial_dT

O

False

Derivative of third virial coefficient with respect to T

DIPOLE_MOMENT, dipole_moment

C m

O

True

Dipole moment

FH

O

True

Flammability hazard

FRACTION_MAX, fraction_max

O

True

Fraction (mole, mass, volume) maximum value for incompressible solutions

FRACTION_MIN, fraction_min

O

True

Fraction (mole, mass, volume) minimum value for incompressible solutions

FUNDAMENTAL_DERIVATIVE_OF_GAS_DYNAMICS, fundamental_derivative_of_gas_dynamics

O

False

Fundamental derivative of gas dynamics

GAS_CONSTANT, gas_constant

J/mol/K

O

True

Molar gas constant

GMOLAR_RESIDUAL, Gmolar_residual

J/mol/K

O

False

Residual molar Gibbs energy

GMOLAR, Gmolar

J/mol

O

False

Molar specific Gibbs energy

GWP100

O

True

100-year global warming potential

GWP20

O

True

20-year global warming potential

GWP500

O

True

500-year global warming potential

G, GMASS, Gmass

J/kg

O

False

Mass specific Gibbs energy

HELMHOLTZMASS, Helmholtzmass

J/kg

O

False

Mass specific Helmholtz energy

HELMHOLTZMOLAR, Helmholtzmolar

J/mol

O

False

Molar specific Helmholtz energy

HH

O

True

Health hazard

HMOLAR_RESIDUAL, Hmolar_residual

J/mol/K

O

False

Residual molar enthalpy

ISENTROPIC_EXPANSION_COEFFICIENT, isentropic_expansion_coefficient

O

False

Isentropic expansion coefficient

ISOBARIC_EXPANSION_COEFFICIENT, isobaric_expansion_coefficient

1/K

O

False

Isobaric expansion coefficient

ISOTHERMAL_COMPRESSIBILITY, isothermal_compressibility

1/Pa

O

False

Isothermal compressibility

I, SURFACE_TENSION, surface_tension

N/m

O

False

Surface tension

M, MOLARMASS, MOLAR_MASS, MOLEMASS, molar_mass, molarmass, molemass

kg/mol

O

True

Molar mass

ODP

O

True

Ozone depletion potential

PCRIT, P_CRITICAL, Pcrit, p_critical, pcrit

Pa

O

True

Pressure at the critical point

PHASE, Phase

O

False

Phase index as a float

PH

O

True

Physical hazard

PIP

O

False

Phase identification parameter

PMAX, P_MAX, P_max, pmax

Pa

O

True

Maximum pressure limit

PMIN, P_MIN, P_min, pmin

Pa

O

True

Minimum pressure limit

PRANDTL, Prandtl

O

False

Prandtl number

PTRIPLE, P_TRIPLE, p_triple, ptriple

Pa

O

True

Pressure at the triple point (pure only)

P_REDUCING, p_reducing

Pa

O

True

Pressure at the reducing point

RHOCRIT, RHOMASS_CRITICAL, rhocrit, rhomass_critical

kg/m^3

O

True

Mass density at critical point

RHOMASS_REDUCING, rhomass_reducing

kg/m^3

O

True

Mass density at reducing point

RHOMOLAR_CRITICAL, rhomolar_critical

mol/m^3

O

True

Molar density at critical point

RHOMOLAR_REDUCING, rhomolar_reducing

mol/m^3

O

True

Molar density at reducing point

SMOLAR_RESIDUAL, Smolar_residual

J/mol/K

O

False

Residual molar entropy (sr/R = s(T,rho) - s^0(T,rho))

TCRIT, T_CRITICAL, T_critical, Tcrit

K

O

True

Temperature at the critical point

TMAX, T_MAX, T_max, Tmax

K

O

True

Maximum temperature limit

TMIN, T_MIN, T_min, Tmin

K

O

True

Minimum temperature limit

TTRIPLE, T_TRIPLE, T_triple, Ttriple

K

O

True

Temperature at the triple point

T_FREEZE, T_freeze

K

O

True

Freezing temperature for incompressible solutions

T_REDUCING, T_reducing

K

O

True

Temperature at the reducing point

V, VISCOSITY, viscosity

Pa s

O

False

Viscosity

Z

O

False

Compressibility factor
